Song time xD

September 30th, 2010

Posted in Background

Commited VisualCortex code!

September 30th, 2010

GPL v3

I just commited the VisualCortex code for guarddog on github , the whole project is now availiable as opensource licensed GPL v3 :)

Next thing on list is connect pathfinding with ultrasonic values!

Posted in Background

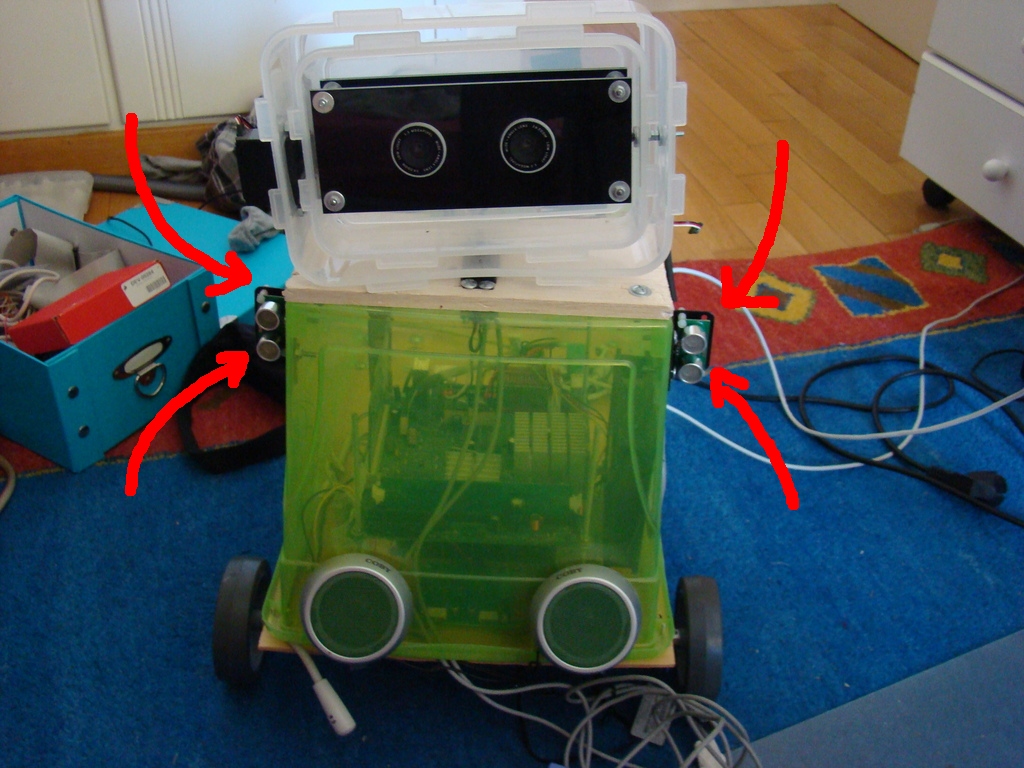

SRF-05 sensors mounted on guarddog

September 30th, 2010

SRF-05 sensors mounted on guarddog

Posted in Background

GuardDog arduino connection done!

September 30th, 2010

I just finished merging the new arduino code with the existing motor library..!
The reason that I didnt make a seperate library is that arduino will also have 2 servo motors that will control the head movement so it all belongs to motor lib functionality :)

This is a very good tutorial on Linux serial interfacing with a device i.e. arduino

Functions RobotGetUltrasonic(unsigned int dev); , RobotGetAccelerometerX(unsigned int dev); , RobotGetAccelerometerY(unsigned int dev); will now be exposed to the robokernel

See more on the GuardDog git repository

For now the arduino the connection diagram is the following

Arduino Schematic

and the code is the following

Code:

const int numOfReadings = 10;                   // number of readings to take/ items in the array
// setup pins and variables for SRF05 sonar device
int sampleultrasonic=1;
int sampleaccelerometer=1;
unsigned int tickcount=0;

struct ultrasonic
{
  int echoPin;                                // SRF05 echo pin (digital 2)
  int initPin;
  unsigned int proximity;
  int arrayIndex;                             // arrayIndex of the current item in the array
  int total;                                  // stores the cumlative total
  int averageDistance;                        // stores the average value
  int readings[numOfReadings];                    // stores the distance readings in an array
};

struct memsic2125
{
  int xPin,yPin;
  int pulseX,pulseY;
  int accelerationX,accelerationY;
};
struct ultrasonic sensor1,sensor2;
struct memsic2125 accelerometer;

unsigned long pulseTime = 0;                    // stores the pulse in Micro Seconds
unsigned long distance = 0;                     // variable for storing the distance (cm)
unsigned int proximity=0;

void setupAccelerometer(struct memsic2125 * accel,int xpin,int ypin)
{
  pinMode(xpin, INPUT);
  pinMode(ypin, INPUT);
  accel->xPin=xpin;
  accel->yPin=ypin;
  accel->pulseX=0;
  accel->pulseY=0;
  accel->accelerationX=0;
  accel->accelerationY=0;
}


void setupUltrasonic(struct ultrasonic *ultr,int echopin,int initpin)
{
  pinMode(initpin, OUTPUT);                     // set init pin 3 as output
  pinMode(echopin, INPUT);                      // set echo pin 2 as input
  ultr->echoPin=echopin;
  ultr->initPin=initpin;
  for (int thisReading = 0; thisReading < numOfReadings; thisReading++)  { ultr->readings[thisReading] = 0; }
  ultr->proximity=0;
  ultr->arrayIndex=0;                             // arrayIndex of the current item in the array
  ultr->total=0;                                  // stores the cumlative total
  ultr->averageDistance=0;
}

//setup
void setup()
{
  setupUltrasonic(&sensor1,2,3);
  setupUltrasonic(&sensor2,4,5);
  setupAccelerometer(&accelerometer,7,6);

 // initialize the serial port, lets you view the
 // distances being pinged if connected to computer
     Serial.begin(38400);
 }
// execute


int sampleUltrasonic(struct ultrasonic *ultr)
{
  digitalWrite(ultr->initPin, HIGH);                    // send 10 microsecond pulse
  delayMicroseconds(10);                  // wait 10 microseconds before turning off
  digitalWrite(ultr->initPin, LOW);                     // stop sending the pulse
  pulseTime = pulseIn(ultr->echoPin, HIGH);             // Look for a return pulse, it should be high as the pulse goes low-high-low
  distance = pulseTime/58;                        // Distance = pulse time / 58 to convert to cm.
  ultr->total= ultr->total - ultr->readings[ultr->arrayIndex];           // subtract the last distance
  ultr->readings[ultr->arrayIndex] = distance;                // add distance reading to array
  ultr->total= ultr->total + ultr->readings[ultr->arrayIndex];            // add the reading to the total
  ultr->arrayIndex = ultr->arrayIndex + 1;                    // go to the next item in the array

  int proximity=0;

  if (ultr->arrayIndex >= numOfReadings)  { ultr->arrayIndex = 0; }
  ultr->averageDistance = ultr->total / numOfReadings;      // calculate the average distance
  // if the distance is less than 255cm then change the brightness of the LED
  //if (ultr->averageDistance < 255) { proximity = 255 - ultr->averageDistance;   }     // this means the smaller the distance the brighterthe LED.
  proximity=ultr->averageDistance;

  return proximity;
}


void sampleAccelerometer(struct memsic2125 * accel)
{
  accel->pulseX = pulseIn(accel->xPin,HIGH);
  accel->pulseY = pulseIn(accel->yPin,HIGH);
  accel->accelerationX = ((accel->pulseX / 10) - 500) * 8;
  accel->accelerationY = ((accel->pulseY / 10) - 500) * 8;
}


void loop()
{
  ++tickcount;

  if ( sampleultrasonic )
  {
  //analogWrite(redLEDPin, redLEDValue);          // Write current value to LED pins
  //Serial.println(averageDistance, DEC);         // print out the average distance to the debugger
   int proximity1 = sampleUltrasonic(&sensor1);
   Serial.print("proximity(1,");
   Serial.print(proximity1);
   Serial.println(")");

   int proximity2 = sampleUltrasonic(&sensor2);
   Serial.print("proximity(2,");
   Serial.print(proximity2);
   Serial.println(")");
  }

   if ( sampleaccelerometer )
   {
    sampleAccelerometer(&accelerometer);
    Serial.print("accelerometers(");
    Serial.print(accelerometer.accelerationX);
    // print a tab character:
    Serial.print(",");
    Serial.print(accelerometer.accelerationY);
    Serial.println(")");
   }

   Serial.print("tickcount(");
   Serial.print(tickcount);
   Serial.println(")");

   Serial.println("#"); /*MARK THE END OF TRANSMISSION*/

   delay(100);                                   // wait 100 milli seconds before looping again
}

Posted in Background

Added Accelerometer code

September 28th, 2010

Added accelerometer code

Code:

const int numOfReadings = 10;                   // number of readings to take/ items in the array
// setup pins and variables for SRF05 sonar device

struct ultrasonic
{
  int echoPin;                                // SRF05 echo pin (digital 2)
  int initPin;
  unsigned int proximity;
  int arrayIndex;                             // arrayIndex of the current item in the array
  int total;                                  // stores the cumlative total
  int averageDistance;                        // stores the average value
  int readings[numOfReadings];                    // stores the distance readings in an array
};

struct memsic2125
{
  int xPin,yPin;
  int pulseX,pulseY;
  int accelerationX,accelerationY;
};
struct ultrasonic sensor1,sensor2;
struct memsic2125 accelerometer;

unsigned long pulseTime = 0;                    // stores the pulse in Micro Seconds
unsigned long distance = 0;                     // variable for storing the distance (cm)
unsigned int proximity=0;

void setupAccelerometer(struct memsic2125 * accel,int xpin,int ypin)
{
  pinMode(xpin, INPUT);
  pinMode(ypin, INPUT);
  accel->xPin=xpin;
  accel->yPin=ypin;
}


void setupUltrasonic(struct ultrasonic *ultr,int echopin,int initpin)
{
  pinMode(initpin, OUTPUT);                     // set init pin 3 as output
  pinMode(echopin, INPUT);                      // set echo pin 2 as input
  ultr->echoPin=echopin;
  ultr->initPin=initpin;
  for (int thisReading = 0; thisReading < numOfReadings; thisReading++)  { ultr->readings[thisReading] = 0; }
  ultr->proximity=0;
  ultr->arrayIndex=0;                             // arrayIndex of the current item in the array
  ultr->total=0;                                  // stores the cumlative total
  ultr->averageDistance=0;
}

//setup
void setup()
{
  setupUltrasonic(&sensor1,2,3);
  setupUltrasonic(&sensor2,4,5);
  setupAccelerometer(&accelerometer,7,6);

 // initialize the serial port, lets you view the
 // distances being pinged if connected to computer
     Serial.begin(9600);
 }
// execute


int sampleUltrasonic(struct ultrasonic *ultr)
{
  digitalWrite(ultr->initPin, HIGH);                    // send 10 microsecond pulse
  delayMicroseconds(10);                  // wait 10 microseconds before turning off
  digitalWrite(ultr->initPin, LOW);                     // stop sending the pulse
  pulseTime = pulseIn(ultr->echoPin, HIGH);             // Look for a return pulse, it should be high as the pulse goes low-high-low
  distance = pulseTime/58;                        // Distance = pulse time / 58 to convert to cm.
  ultr->total= ultr->total - ultr->readings[ultr->arrayIndex];           // subtract the last distance
  ultr->readings[ultr->arrayIndex] = distance;                // add distance reading to array
  ultr->total= ultr->total + ultr->readings[ultr->arrayIndex];            // add the reading to the total
  ultr->arrayIndex = ultr->arrayIndex + 1;                    // go to the next item in the array

  int proximity=0;

  if (ultr->arrayIndex >= numOfReadings)  { ultr->arrayIndex = 0; }
  ultr->averageDistance = ultr->total / numOfReadings;      // calculate the average distance
  // if the distance is less than 255cm then change the brightness of the LED
  if (ultr->averageDistance < 255) { proximity = 255 - ultr->averageDistance;   }     // this means the smaller the distance the brighterthe LED.


  return proximity;
}


void sampleAccelerometer(struct memsic2125 * accel)
{
  accel->pulseX = pulseIn(accel->xPin,HIGH);
  accel->pulseY = pulseIn(accel->yPin,HIGH);
  accel->accelerationX = ((accel->pulseX / 10) - 500) * 8;
  accel->accelerationY = ((accel->pulseY / 10) - 500) * 8;
}

void loop()
{



  //analogWrite(redLEDPin, redLEDValue);          // Write current value to LED pins
  //Serial.println(averageDistance, DEC);         // print out the average distance to the debugger
   int proximity = sampleUltrasonic(&sensor1);
   Serial.print("Proximity 1 : ");
   Serial.println(proximity);

   proximity = sampleUltrasonic(&sensor2);
   Serial.print("Proximity 2 : ");
   Serial.println(proximity);


   sampleAccelerometer(&accelerometer);
   Serial.print("Accelerometers : ");
   Serial.print(accelerometer.accelerationX);
   // print a tab character:
   Serial.print("\t");
   Serial.print(accelerometer.accelerationY);
   Serial.println();

  delay(100);                                   // wait 100 milli seconds before looping again
}

Posted in Background

Integrated 2nd Ultrasonic sensor

September 27th, 2010

Dual ultrasonic

I finished soldering cables together and sorting them out so now i can finally sample both ultrasonic sensors at the same time and transmit their status over serial usb!

I also improved the code found on the site I mentioned some days before , by grouping together everything so I will be able to add functionallity without spaghetti code ( on a chip &amp;#58;&amp;#80; ) ..

I am also thinking of the protocol that I will create to perform functions on the arduino &amp;#58;&amp;#41;
I like this kind of things very much :o) ..!
When it will be ready I will also upload in in the robot github repo &amp;#58;&amp;#41;

On other news tommorow is my last class exam but I am not sure I will pass it &amp;#58;&amp;#80; if only my work here could be taken into account..

Code:

const int numOfReadings = 10;                   // number of readings to take/ items in the array
// setup pins and variables for SRF05 sonar device

struct ultrasonic
{
  int echoPin;                                // SRF05 echo pin (digital 2)
  int initPin;
  unsigned int proximity;
  int arrayIndex;                             // arrayIndex of the current item in the array
  int total;                                  // stores the cumlative total
  int averageDistance;                        // stores the average value
  int readings[numOfReadings];                    // stores the distance readings in an array
};

struct ultrasonic sensor1,sensor2;

unsigned long pulseTime = 0;                    // stores the pulse in Micro Seconds
unsigned long distance = 0;                     // variable for storing the distance (cm)
unsigned int proximity=0;



void setupUltrasonic(struct ultrasonic *ultr,int echopin,int initpin)
{
  pinMode(initpin, OUTPUT);                     // set init pin 3 as output
  pinMode(echopin, INPUT);                      // set echo pin 2 as input
  ultr->echoPin=echopin;
  ultr->initPin=initpin;
  for (int thisReading = 0; thisReading < numOfReadings; thisReading++)  { ultr->readings[thisReading] = 0; }
  ultr->proximity=0;
  ultr->arrayIndex=0;                             // arrayIndex of the current item in the array
  ultr->total=0;                                  // stores the cumlative total
  ultr->averageDistance=0;
}

//setup
void setup()
{
  setupUltrasonic(&sensor1,2,3);
  setupUltrasonic(&sensor2,4,5);

 // initialize the serial port, lets you view the
 // distances being pinged if connected to computer
     Serial.begin(9600);
 }
// execute


int sampleUltrasonic(struct ultrasonic *ultr)
{
  digitalWrite(ultr->initPin, HIGH);                    // send 10 microsecond pulse
  delayMicroseconds(10);                  // wait 10 microseconds before turning off
  digitalWrite(ultr->initPin, LOW);                     // stop sending the pulse
  pulseTime = pulseIn(ultr->echoPin, HIGH);             // Look for a return pulse, it should be high as the pulse goes low-high-low
  distance = pulseTime/58;                        // Distance = pulse time / 58 to convert to cm.
  ultr->total= ultr->total - ultr->readings[ultr->arrayIndex];           // subtract the last distance
  ultr->readings[ultr->arrayIndex] = distance;                // add distance reading to array
  ultr->total= ultr->total + ultr->readings[ultr->arrayIndex];            // add the reading to the total
  ultr->arrayIndex = ultr->arrayIndex + 1;                    // go to the next item in the array

  int proximity=0;

  if (ultr->arrayIndex >= numOfReadings)  { ultr->arrayIndex = 0; }
  ultr->averageDistance = ultr->total / numOfReadings;      // calculate the average distance
  // if the distance is less than 255cm then change the brightness of the LED
  if (ultr->averageDistance < 255) { proximity = 255 - ultr->averageDistance;   }     // this means the smaller the distance the brighterthe LED.


  return proximity;
}

void loop()
{



  //analogWrite(redLEDPin, redLEDValue);          // Write current value to LED pins
  //Serial.println(averageDistance, DEC);         // print out the average distance to the debugger
   int proximity = sampleUltrasonic(&sensor1);
   Serial.println("Proximity 1 ");
   Serial.println(proximity);

   proximity = sampleUltrasonic(&sensor2);
   Serial.println("Proximity 2 ");
   Serial.println(proximity);


  delay(100);                                   // wait 100 milli seconds before looping again
}

Posted in Background

Test b2evolution -> twitter -> fb

September 26th, 2010

Retesting b2evolution -> twitter -> facebook syndication..

Posted in Background

<< 1 ... 7 8 9 10 11 12 13 14 15 16 17 ... 27 >>
